The Winston-Salem Homeowner’s Guide to Chimney Cap Installation: What the Piedmont Triad’s Climate, Historic Homes, and Local Wildlife Laws Actually Require

If you’ve ever watched a winter storm roll through the Forsyth County area and wondered what’s standing between your chimney flue and several gallons of ice water, the answer is — ideally — a properly installed chimney cap. If there isn’t one up there, or if the one you have is a bargain-bin galvanized steel unit from a big-box store, there’s a reasonable chance your chimney is quietly accumulating damage right now.

This guide is written specifically for homeowners in Winston-Salem, Greensboro, High Point, Kernersville, Clemmons, Rural Hall, and the surrounding NC Triad region. The advice here reflects the real conditions your chimney faces: freeze-thaw weather patterns, older housing stock with non-standard flue dimensions, and even a federally protected bird species that can complicate your installation timeline. None of that is covered in the generic articles floating around online, and it should be — because getting this decision wrong leads to water damage, liner replacement, and smoke safety issues that are entirely avoidable.

Let’s walk through everything you actually need to know.

What a Chimney Cap Does (and What It Doesn’t)

Before anything else, it’s worth clearing up a confusion that costs homeowners money every year: a chimney cap and a chimney crown are not the same thing.

The chimney crown is the concrete or mortar structure that covers the top of the masonry chimney itself, sloping outward to direct water away from the flue opening. It’s part of the chimney structure.

The chimney cap is the metal cover — typically fitted with mesh sides — that sits directly over the flue tile opening. It’s the component that keeps rain, animals, leaves, and debris out of the flue while still allowing combustion gases to escape.

Both matter. Both can fail. But they’re different problems with different solutions, and a contractor who conflates them when explaining your estimate is one worth questioning.

A properly functioning chimney cap does several things:

• Keeps rainwater out of the flue, where it would otherwise accelerate liner deterioration and mortar breakdown
• Blocks birds, squirrels, raccoons, and insects from nesting in the flue
• Catches and contains burning embers before they can land on your roof or surrounding landscaping
• Provides a degree of wind deflection that supports consistent draft performance
• Reduces downdraft events that push cold air or smoke back into your living space

What it doesn’t do is compensate for a cracked flue liner, a deteriorating crown, or a chimney that hasn’t been inspected in years. This point matters — and we’ll come back to it.

Why Winston-Salem’s Climate Is Harder on Chimney Caps Than Most Homeowners Realize

The NC Triad sits in NOAA Climate Zone 4A, a humid mixed climate where winters regularly cycle above and below the freezing mark multiple times per season. That pattern — freeze, thaw, freeze again — is one of the more destructive forces a chimney system faces, and it has direct implications for which cap materials hold up and which ones don’t.

The Problem with Galvanized Steel in the Piedmont Triad

Galvanized steel caps are the most commonly sold option at hardware stores. They’re inexpensive and they look functional when new. But galvanized steel has a meaningful weakness in the Piedmont Triad’s climate: the zinc coating that protects the steel from rust begins to break down under repeated freeze-thaw stress and sustained humidity exposure. Winston-Salem averages over 45 inches of rainfall per year and regularly sees humid summer conditions that accelerate surface oxidation on lesser metals.

The result is a cap that begins showing rust within a few years, eventually developing pinhole corrosion and gaps that allow the very moisture it was meant to block to enter the flue. By the time rust is visible from the ground, water intrusion is typically already occurring.

What to Specify Instead

For Winston-Salem homes, there are two materials that genuinely hold up to local conditions:

Type 304 or Type 316 Stainless Steel — These alloys resist corrosion far more effectively than galvanized steel and are built to handle the humidity and freeze-thaw cycling common to NOAA Zone 4A. Type 316 offers additional resistance to chloride-based corrosion, which matters less in an inland market like Winston-Salem but still contributes to long-term durability.

Copper — Copper caps are the premium option and develop a natural patina over time that actually provides additional corrosion resistance. They’re an excellent match for historic homes in neighborhoods like Ardmore, Buena Vista, or the West End Historic District, where aesthetics and longevity both matter. If you’re weighing whether a copper cap makes sense for your home, our article on custom copper chimney caps covers material grades, patina timelines, and what the long-term investment looks like. Copper is a longer-term investment but one that tends to outlast the chimney it protects.

The short version: if a contractor is recommending galvanized steel for a Winston-Salem home without a clear explanation of why it’s appropriate in your specific situation, ask questions.

Historic Homes and Non-Standard Flues: A Winston-Salem-Specific Challenge

Winston-Salem has an unusually rich stock of pre-1950 homes. Neighborhoods like Ardmore, Washington Park, Buena Vista, and the West End Historic District contain homes with original masonry chimneys that were built to different standards — and different dimensions — than what modern off-the-shelf chimney caps are designed for.

Why Universal-Fit Caps Often Fail on Older Homes

Most chimney caps sold at retail are sized for standard modern flue tiles, typically a 13″ x 13″ or similar dimension. Older Winston-Salem homes, however, frequently feature:

• Non-standard flue tile dimensions that fall outside modern sizing categories
• Multiple-flue chimney systems, where a single exterior chimney stack contains two or more separate flues serving different appliances — a fireplace on one floor, a furnace flue, or an old boiler connection
• Original terra cotta liner configurations that may be irregularly shaped or partially reconfigured over decades of repair work

When a cap designed for a single standard flue is placed over a double-flue system, several problems emerge. The cap may not seal properly at the cap-to-crown interface, allowing water to penetrate at the edges. More seriously, a cap that partially covers two flues without adequately protecting each opening can create backdraft conditions, where pressure differentials between the two flues cause exhaust gases from one to push back into the living space through the other.

This isn’t a theoretical risk. It’s a documented failure mode in older multi-flue homes, and it’s one that a contractor unfamiliar with Winston-Salem’s historic housing stock might not think to check for.

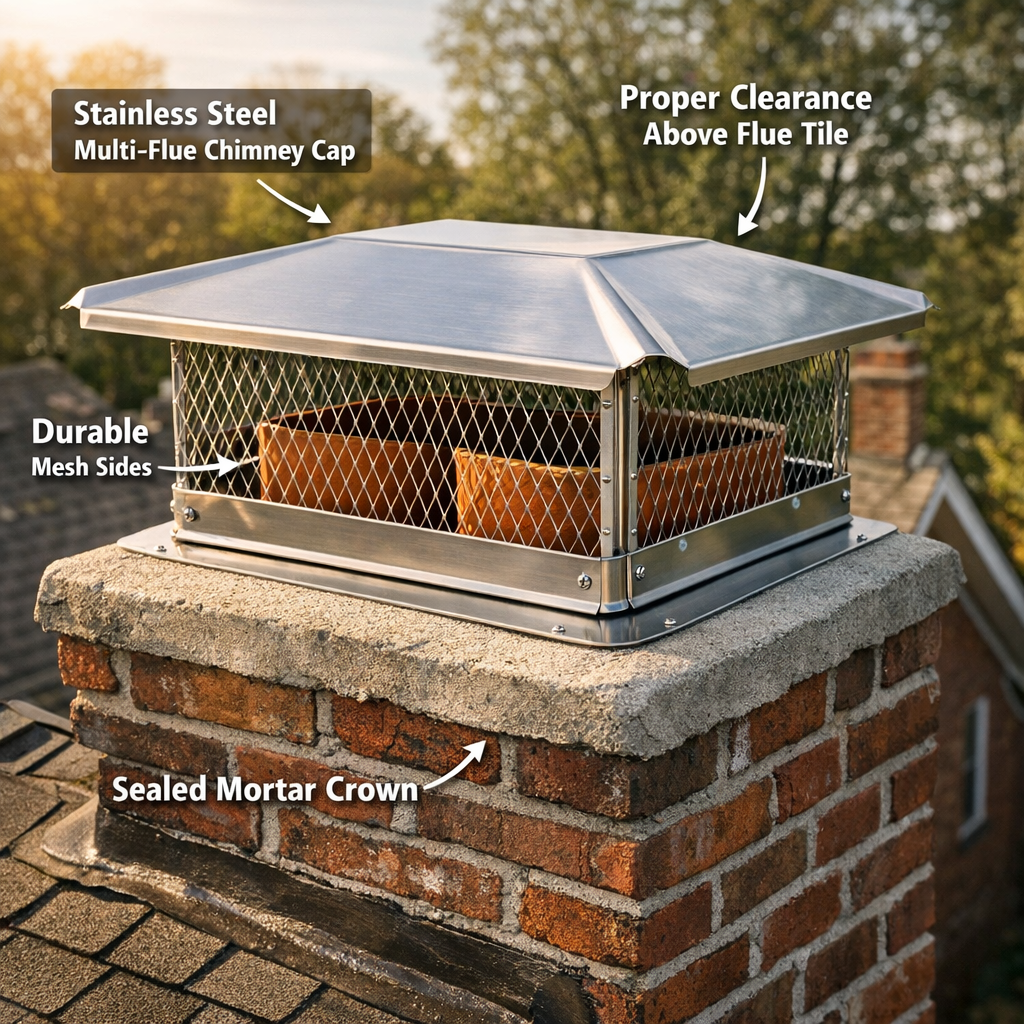

What Proper Installation Looks Like on Historic Properties

For multi-flue systems or chimneys with non-standard dimensions, the right solution is either:

1. A custom-fitted cap measured precisely to the chimney’s actual dimensions
2. Individual flue caps installed over each separate flue opening, rather than a single cap spanning the whole chimney crown

Either approach requires accurate measurement before ordering materials — not an estimate, but actual dimensions taken at the chimney top. It also requires an inspection of the crown itself, because a custom cap anchored to a deteriorating mortar crown will fail regardless of how well it fits.

Chimney Cap Sizing, Draft Dynamics, and Why Cap Design Affects Your Fireplace Performance

One of the most consistently overlooked aspects of chimney cap selection is its effect on draft — the upward movement of combustion gases through the flue that makes your fireplace or stove function safely.

How Cap Design Affects Draft

Every chimney cap creates some degree of restriction over the flue opening. In most situations, this restriction is minimal and acceptable. But in certain conditions common in the Winston-Salem area, cap design choices can meaningfully affect whether your fireplace draws properly or causes smoke to roll back into the room.

Factors that can create draft challenges include:

• Short chimney height relative to the roofline — NFPA 211, the standard governing chimney system installation, specifies that chimney tops should extend at least two feet above any roof surface within ten feet horizontally. Homes in Winston-Salem’s hillside neighborhoods or those with complex rooflines sometimes have chimneys that just meet this minimum, where any additional restriction from an overly tight cap compounds the draft challenge.
• High-efficiency wood inserts — Many Winston-Salem homeowners have added high-efficiency wood inserts to existing fireplaces. These inserts operate at lower flue temperatures than open fireplaces, which means less thermal energy driving the draft. A cap with high mesh density or a restrictive top design can be the difference between an insert that drafts cleanly and one that causes intermittent smoke spillage.
• Wind patterns from Appalachian corridors — Winston-Salem’s position in the Piedmont, with the Appalachian foothills to the west, creates wind patterns that can produce sustained updraft and downdraft pressure at chimney tops depending on seasonal conditions. For homes where downdraft has been a recurring problem, wind-directional or rotating cap styles — designed to orient the opening away from prevailing winds or to use wind energy to induce upward draft — are worth considering over standard flat-top designs.

The takeaway: cap selection isn’t just about keeping rain out. For homes with existing draft challenges, the right cap design is part of the solution. The article on the ultimate guide to different types of chimney caps breaks down wind-directional, rotating, and draft-inducing designs in detail if you want to explore those options further.

The Chimney Swift: A Legally Significant Detail for Winston-Salem Homeowners

This is the part of chimney cap planning that almost no one discusses, and it has genuine legal implications.

Chimney swifts (Chaetura pelagica) are migratory birds that historically nested in hollow trees and have, over the past century, adapted to use masonry chimney flues as preferred nesting sites. Winston-Salem sits directly within the chimney swift’s migratory range and summer nesting territory. These birds typically arrive in the NC Triad between late April and early May and remain through September before migrating south.

Here is the legally relevant part: chimney swifts are protected under the Migratory Bird Treaty Act of 1918, a federal law that makes it illegal to disturb, destroy, or relocate an active nest, eggs, or young birds. This protection applies regardless of where the nest is located — including inside your chimney flue.

What This Means for Cap Installation Timing

If you have an uncapped chimney and suspect swifts may have nested inside, installing a cap between approximately May and August without first confirming the flue is unoccupied is a federal wildlife compliance issue. The correct approach is:

1. Have the flue inspected before the nesting season begins (ideally in early spring) or after swifts have departed for migration in September
2. If swifts are actively nesting, wait until the young have fledged and the birds have departed before capping
3. If you’re uncertain whether your chimney has been used as a nesting site, a Level 1 chimney inspection will include examination of the flue interior

For reference, the U.S. Fish & Wildlife Service provides guidance on chimney swift nesting protections that homeowners can consult directly.

The NC Wildlife Resources Commission also offers local guidance on chimney swift activity in North Carolina.

This isn’t meant to alarm you — it’s simply information that affects your timing, and most homeowners have no idea it applies to them.

What Should Happen Before the Cap Goes On: Inspection Sequencing

A chimney cap is only as effective as the system it’s installed on. This is where a lot of homeowners — and frankly, some contractors — miss the mark.

Installing a new cap on a chimney with a deteriorating crown or cracked flue liner doesn’t protect your home. It seals moisture pathways in ways that accelerate deterioration inside the system, where damage is much more expensive to find and repair.

NFPA 211 — the National Fire Protection Association’s standard for chimneys, fireplaces, and venting systems — establishes two inspection levels relevant here:

• Level 1 Inspection: Appropriate for chimneys in regular service with no changes to the system. Covers accessible portions of the chimney exterior and interior, and the accessible portions of the appliance and chimney connection.
• Level 2 Inspection: Required when any changes have been made to the system, when the property is being sold, or after any event that may have affected the chimney structure (such as a chimney fire or significant storm). Level 2 includes video scanning of the flue interior.

At minimum, a Level 1 inspection should precede cap installation on any chimney that hasn’t been professionally examined within the past year. If the home is older, hasn’t had a fire in several years, or shows any visible crown deterioration, a Level 2 is the more appropriate starting point.

What to Look for in the Inspection Report

Before approving cap installation, confirm the following from your inspection:

If any of these conditions are compromised, they should be addressed before or alongside cap installation — not after.

North Carolina Building Code and Permit Considerations

For most standard chimney cap replacements on existing residential chimneys in Forsyth County and surrounding Triad jurisdictions, a separate building permit is not typically required. However, this changes in specific circumstances:

• Installation on a new chimney or new construction almost always involves permit requirements under the North Carolina Residential Building Code, which governs chimney construction under Section R1003
• Significant structural repairs to the crown or liner that accompany cap installation may trigger permit requirements depending on scope
• Properties within historic district boundaries — including portions of the West End and other designated areas in Winston-Salem — may have additional review requirements through the city’s Historic Preservation Commission

If you’re uncertain whether your project requires a permit, a reputable contractor will know the answer for your specific situation and jurisdiction. If a contractor is vague about permitting requirements or actively discourages pulling permits, that’s a red flag worth noting.

How to Evaluate a Chimney Cap Installation Contractor in the Winston-Salem Area

Because the chimney cap installation market — like most trades — includes a range of operator quality, it’s worth knowing what separates contractors who do this work correctly from those who don’t.

Credentials That Matter

• CSIA Certification — The Chimney Safety Institute of America certifies chimney sweeps and inspectors through a recognized professional credentialing program. A CSIA-certified technician has demonstrated knowledge of chimney systems, installation standards, and safety protocols beyond basic trade experience.
• Licensed and insured in North Carolina — Verify that any contractor you hire carries general liability insurance and workers’ compensation coverage. Ask for certificates before work begins.
• Local reputation — Reviews, BBB standing, and years of operation in the Triad specifically matter. A contractor with a long track record serving Winston-Salem, Greensboro, and High Point has worked on the variety of home styles, flue configurations, and conditions you’re likely to have.

Questions Worth Asking Before Hiring

• Will you measure the flue dimensions before ordering the cap, or are you using a universal-fit product?
• Do you recommend a chimney inspection before installation, and do you perform them?
• What cap material are you recommending, and why is it appropriate for this location and climate?
• Are you familiar with the multi-flue configurations common in older Triad homes?
• What anchoring method do you use, and how do you assess whether the crown can support it?

A contractor who answers these questions confidently and specifically — rather than with generic reassurances — is one who has actually done this work correctly.

Common Installation Failure Modes to Know About

Even good-quality caps fail when installation is done incorrectly. The most common failure modes are preventable, and knowing them lets you verify the work was done right.

• Anchoring screws driven into deteriorated mortar or brick — If the crown surface is soft or crumbling, standard sheet metal screws won’t hold. Proper installation on a compromised crown requires either crown repair first or an adhesive-anchored cap design rated for the surface condition.
• Cap sizing that leaves gaps at the cap-to-crown interface — A cap that’s slightly too small for the flue tile dimensions allows water to enter around the edges of the cap base. Water doesn’t need much of a gap to cause significant damage to the liner and mortar below.
• Mesh openings that are too large or too small — The mesh around the sides of the cap needs to be small enough to exclude small animals and large embers (typically ½” mesh), but not so fine that creosote and debris accumulation causes rapid restriction of the flue opening.
• Installing a standard cap on a double-flue chimney without examining both openings — As discussed in the historic home section, this creates backdraft risks that aren’t immediately obvious but become apparent once both appliances are in use.

Putting It Together: What Good Chimney Cap Work Looks Like

To summarize the key decisions and checkpoints in plain terms:

Before installation:
– Schedule a Level 1 inspection (or Level 2 if the home is older or the chimney shows visible wear)
– Confirm the crown is in sound enough condition to anchor the cap properly
– If your chimney is in an older Winston-Salem neighborhood, verify that flue dimensions are measured accurately rather than assumed

When selecting a cap:
– Choose stainless steel (Type 304 minimum) or copper for durability in the Piedmont Triad’s climate
– If draft has been a problem, discuss wind-directional cap options with your contractor
– For multi-flue chimneys, use individual flue caps or a precisely fitted custom cap — not a universal-fit option

Timing:
– If your chimney is uncapped and you’re in the May–August window, have the flue inspected for chimney swift activity before proceeding
– Spring and fall are the ideal seasons for cap installation in the Winston-Salem area — before heating season starts and outside of peak nesting periods

After installation:
– Confirm the cap is level, fully seated, and anchored without visible gaps at the base
– Verify mesh integrity and ensure no material was forced against the flue tile edges

A chimney cap done right is a straightforward, durable solution. Done wrong — or done without the inspection and preparation work that should precede it — it’s an expensive problem deferred rather than solved.

At Smithrock Roofing, we’ve been working on the homes and chimneys of the NC Triad for years. We know the older homes in Ardmore and the newer construction in Clemmons. We know what the Piedmont winters do to inferior materials and what homeowners in this region actually need to protect their investment. If you’re ready to get this handled properly, we’re ready to take a look.

Strategic Recommendations for 2026

If you’re planning ahead or working through a list of deferred home maintenance, here are three concrete next steps worth prioritizing in the coming year:

1. Book a Pre-Season Chimney Inspection Before Fall 2026
Don’t wait until you need the fireplace to find out something is wrong. Scheduling a Level 1 or Level 2 inspection in late summer gives you enough time to address any issues — crown repairs, mortar work, relining — before heating season arrives. Contractors in the Winston-Salem area are far less booked in August than they are in October.

2. Consider a Whole-Chimney Assessment If Your Home Predates 1980
Older homes in neighborhoods like Ardmore, Buena Vista, and Washington Park often have chimneys built to standards that no longer apply. A comprehensive assessment — not just a cap swap — will tell you what’s actually present: flue dimensions, liner condition, crown integrity, and whether the existing system is compatible with your current appliances. This is especially relevant if you’ve added a gas insert or converted from wood-burning use.

3. Use a Licensed, Locally Experienced Contractor for Any Chimney Work
This sounds obvious, but it matters more than homeowners often realize. A contractor familiar with Piedmont Triad construction patterns, local climate behavior, and the specific challenges of older NC homes will make better material recommendations and catch problems that a generalist might overlook. Ask specifically about their experience with Winston-Salem chimney cap work before committing.

Frequently Asked Questions

How do I know if my chimney cap needs to be replaced rather than just repaired?

If the mesh is torn, the cap has shifted off-center, or you’re seeing visible rust and corrosion on the frame, replacement is usually the more reliable choice. Minor surface rust on a stainless steel cap may not require full replacement, but any structural deformation, compromised mesh, or loosened anchor points typically mean the cap is no longer doing its job. A quick inspection will clarify which situation applies to your chimney.

Is a chimney cap installation something a homeowner can do themselves?

Technically, yes — but practically, it’s more complicated than it appears. Accurate flue measurement, proper material selection, and secure anchoring all require access to the roofline and familiarity with chimney construction. In older Winston-Salem homes especially, flue dimensions often don’t match standard catalog sizes. An improper fit creates gaps that allow water, debris, and animals to enter — which is the exact problem the cap is meant to solve. Professional installation ensures the cap is correctly matched and properly seated.

What time of year is best for chimney cap installation in the Winston-Salem area?

Spring and early fall are the ideal windows. Spring installation gets your chimney protected before summer storm season and well before the fall heating rush, when contractor availability tightens. If your chimney has been uncapped between May and August, it should be inspected for chimney swift nesting activity before any work proceeds, as these birds are federally protected and active nests cannot be disturbed.

Does a chimney cap affect draft or airflow through the fireplace?

It can, depending on the design. A standard cap has minimal effect on draft under normal conditions. However, if your chimney already has draft issues — caused by height, surrounding tree lines, or nearby structures — the wrong cap design can make things worse. Wind-directional caps are specifically designed to address draft problems and may be worth discussing with your contractor if backdraft or smoke spillage has been an issue in your home.

Conclusion

Chimney cap work is one of those jobs where getting it right the first time saves significant hassle down the road — and having a contractor who knows this region, its climate, and its housing stock makes a real difference. Smithrock Roofing has worked on homes throughout Winston-Salem and Kernersville, and we bring that local experience to every job we take on. If your chimney needs attention, we’re glad to take a look and give you a straight answer about what it actually needs. Get a Free Estimate
